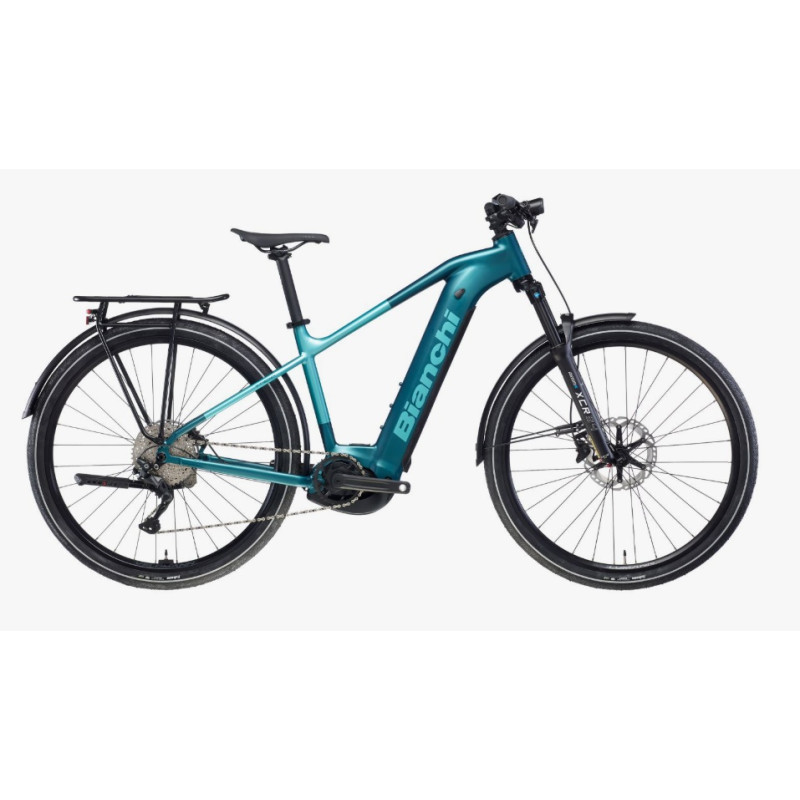

BIANCHI T-TRONIK X 9.2 TRK-2026

• Motor Unit

Bosch Performance Line BDU3460, 75 Nm - Purion 200

1. Battery

Bosch Powertube 600 Wh Horizontal

• Frameset

Bianchi T-Tronik X, aluminium, 12x148 mm rear thru axle, Post mount 180 disc brake type, Front travel 120 mm, Internal cable routing in steerer, 800 Wh battery compatible sizes SM-MD-LG-XL

1. Fork

Suntour XCR34X, Air, 120 mm travel, Steerer tube 1,5" tapered, 34 mm stanchions, 15x110 Boost axle, Rotor: minimum 180 mm, maximum 203 mm

2. Headset

FSA 1.5" for tapered fork steerer, Dual side internal cable routing

• Drivetrain

1. Shifters

Shimano Deore SL-M4100, Rapidfire Plus

2. Rear Derailleur

Shimano Deore, RD-M4120, 10sp, Shadow design

3. Crankset

FSA CK-320/IS, Aluminium DieCast, Crank length: 170 mm

4. Chain

KMC e10S EPT, Anti-Rust

5. Cassette

Sunrace CSMS2, 11-42T

• Brakes

1. Brakes

Shimano Deore BR-MT410, 2 piston, resin pad

2. Brake Levers

Shimano Deore BL-MT401

3. Rotor

FRONT: Shimano SM-RT30, 203 mm / REAR: Saccon CDM80FD, 180 mm

• Wheels

1. Wheels

Velomann 622x30, 32 hole; Front hub: Shimano TC500 Thru axle; Rear hub: Shimano TC500 Thru axle

2. Tire

Obor Mike Bear, 29"x2,35", 60 TPI

• Cockpit

1. Stem

Velomann Viper0, alloy, Diameter 28.6 mm, Barbore 31,8 mm Size: 60 mm

2. Handlebar

Velomann Aluminium, Rise 15 mm, Barbore 31.8 mm, Width 740 mm Size: 740 mm

3. Grips / Extensions

Herrmans Luna lock 130 mm

• Saddle

1. Seatpost Clamp

Ursus Alloy, Quick Release, Diameter 34,9 mm

2. Seatpost

Velomann AL2014, Diameter: 31,6 mm, Seatback: 0 mm for size SM; Dropper, travel 125 mm for size MD-LG; Dropper, travel 150 mm for size XL

3. Saddle

Velomann Velomann Gnd Full-fit Start Up, Carbon-steel rail, 262 mm x 145 mm

• Accessories

1. Pedals

FPD NW-91K, PP black body, Steel cage

2. Mudguards

Marcon Primo 65, alluminium

3. Kickstand

Ursus MOOI PLUS, 40Kg max system weight

4. Front Light

Spanninga X&O 50, 50lux

5. Rear Light

Spanninga Pimento large, w/ reflector

• Based on component availability, Bianchi reserves the right to make changes on specifications without notice.
